德國BOSERL研發制造節能環保減速機電機一體機_帶電機減速器一套_電動機與減速箱_電機減速器,19年創辦中國BOSERL減速機生產廠家伯仕傳動

減速機電機一體機_帶電機減速器一套_德國BOSERL電動機與減速箱生產廠家

咨詢服務熱線：

13360667204

微信13360667204

平行軸斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速機廠家 > FF系列減速機廠家

FF27DRE71S4詳細信息

prevnext

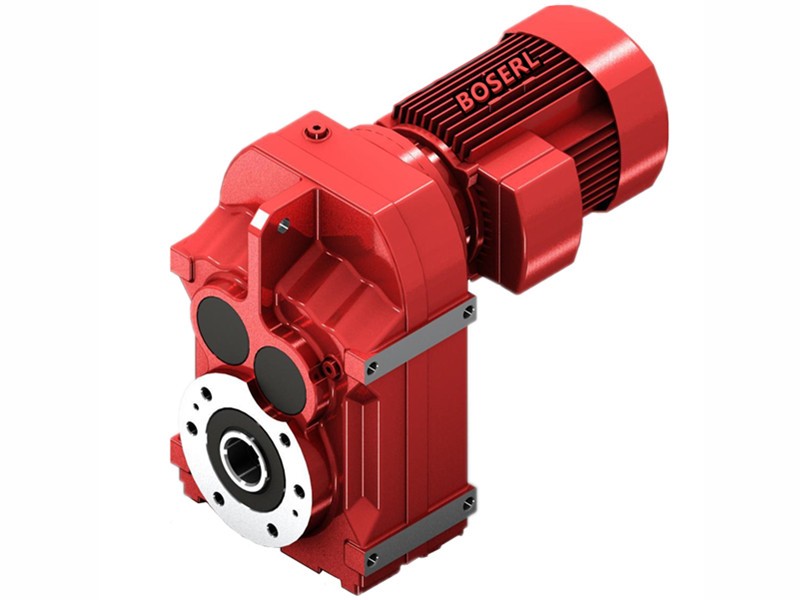

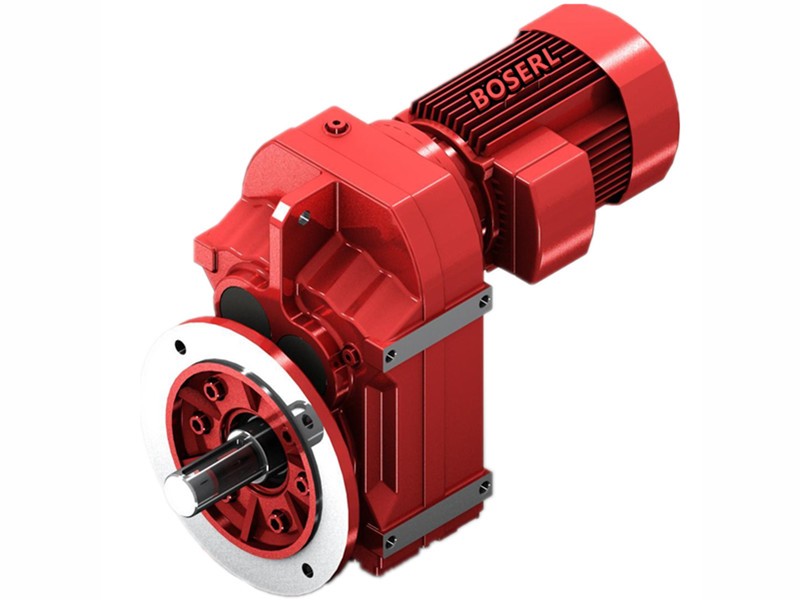

FF27DRE71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：一分鐘202轉減速機電機_FF27DRE71S4_FF27DVE71S4

FF27DRE71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FF27DRE71S477.210.25KW17.0rpm142N.m20Kg4500N0.90
FF27DRE71S472.370.25KW18.0rpm133N.m20Kg4500N1.00
FF27DRE71S463.860.25KW20.0rpm117N.m20Kg4500N1.10
FF27DRE71S456.620.25KW23.0rpm104N.m20Kg4500N1.25
FF27DRE71S450.190.25KW26.0rpm92N.m20Kg4440N1.40
FF27DRE71S446.780.25KW28.0rpm86N.m20Kg4370N1.50
FF27DRE71S440.890.25KW32.0rpm75N.m20Kg4240N1.75
FF27DRE71S438.330.25KW34.0rpm70N.m20Kg4180N1.85
FF27DRE71S433.830.25KW38.0rpm62N.m20Kg4060N2.10
FF27DRE71S429.560.25KW44.0rpm54N.m20Kg3920N2.40
FF27DRE71S427.180.25KW48.0rpm50N.m20Kg3840N2.60
FF27DRE71S423.250.25KW56.0rpm43N.m20Kg3690N3.00
FF27DRE71S420.150.25KW64.0rpm37N.m20Kg3550N3.50
FF27DRE71S418.840.25KW69.0rpm35N.m20Kg3480N3.80
FF27DRE71S416.280.25KW80.0rpm30N.m20Kg3350N4.40
FF27DRE71S413.840.25KW94.0rpm25N.m20Kg3200N5.10
FF27DRE71S412.350.25KW105rpm23N.m20Kg3090N5.70
FF27DRE71S410.550.25KW123rpm19N.m20Kg2950N6.70
FF27DRE71S49.880.25KW132rpm18N.m20Kg2900N7.20
FF27DRE71S49.400.25KW138rpm17N.m20Kg2840N7.50
FF27DRE71S48.130.25KW160rpm15N.m20Kg2720N8.30
FF27DRE71S46.910.25KW188rpm13N.m20Kg2590N9.00
FF27DRE71S46.170.25KW211rpm11N.m20Kg2500N9.60
FF27DRE71S45.270.25KW247rpm9.7N.m20Kg2380N10.0
FF27DRE71S44.930.25KW264rpm9.1N.m20Kg2340N11.0
FF27DRE71S44.160.25KW313rpm7.6N.m20Kg2220N11.0

FF27DVE71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FF27DVE71S477.210.25KW17.0rpm142N.m20Kg4500N0.90
FF27DVE71S472.370.25KW18.0rpm133N.m20Kg4500N1.00
FF27DVE71S463.860.25KW20.0rpm117N.m20Kg4500N1.10
FF27DVE71S456.620.25KW23.0rpm104N.m20Kg4500N1.25
FF27DVE71S450.190.25KW26.0rpm92N.m20Kg4440N1.40
FF27DVE71S446.780.25KW28.0rpm86N.m20Kg4370N1.50
FF27DVE71S440.890.25KW32.0rpm75N.m20Kg4240N1.75
FF27DVE71S438.330.25KW34.0rpm70N.m20Kg4180N1.85
FF27DVE71S433.830.25KW38.0rpm62N.m20Kg4060N2.10
FF27DVE71S429.560.25KW44.0rpm54N.m20Kg3920N2.40
FF27DVE71S427.180.25KW48.0rpm50N.m20Kg3840N2.60
FF27DVE71S423.250.25KW56.0rpm43N.m20Kg3690N3.00
FF27DVE71S420.150.25KW64.0rpm37N.m20Kg3550N3.50
FF27DVE71S418.840.25KW69.0rpm35N.m20Kg3480N3.80
FF27DVE71S416.280.25KW80.0rpm30N.m20Kg3350N4.40
FF27DVE71S413.840.25KW94.0rpm25N.m20Kg3200N5.10
FF27DVE71S412.350.25KW105rpm23N.m20Kg3090N5.70
FF27DVE71S410.550.25KW123rpm19N.m20Kg2950N6.70
FF27DVE71S49.880.25KW132rpm18N.m20Kg2900N7.20
FF27DVE71S49.400.25KW138rpm17N.m20Kg2840N7.50
FF27DVE71S48.130.25KW160rpm15N.m20Kg2720N8.30
FF27DVE71S46.910.25KW188rpm13N.m20Kg2590N9.00
FF27DVE71S46.170.25KW211rpm11N.m20Kg2500N9.60
FF27DVE71S45.270.25KW247rpm9.7N.m20Kg2380N10.0
FF27DVE71S44.930.25KW264rpm9.1N.m20Kg2340N11.0
FF27DVE71S44.160.25KW313rpm7.6N.m20Kg2220N11.0

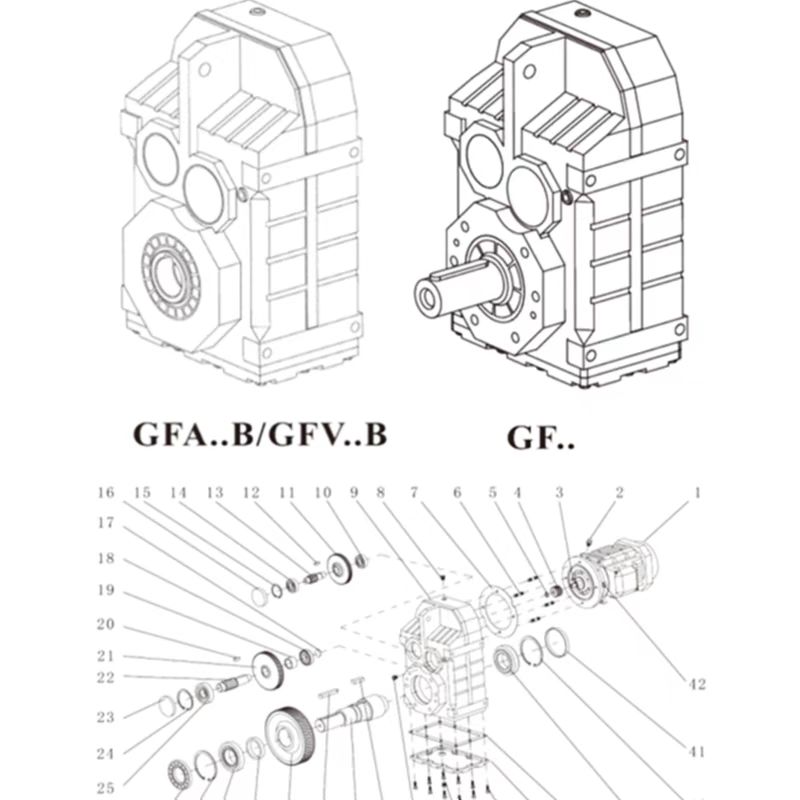

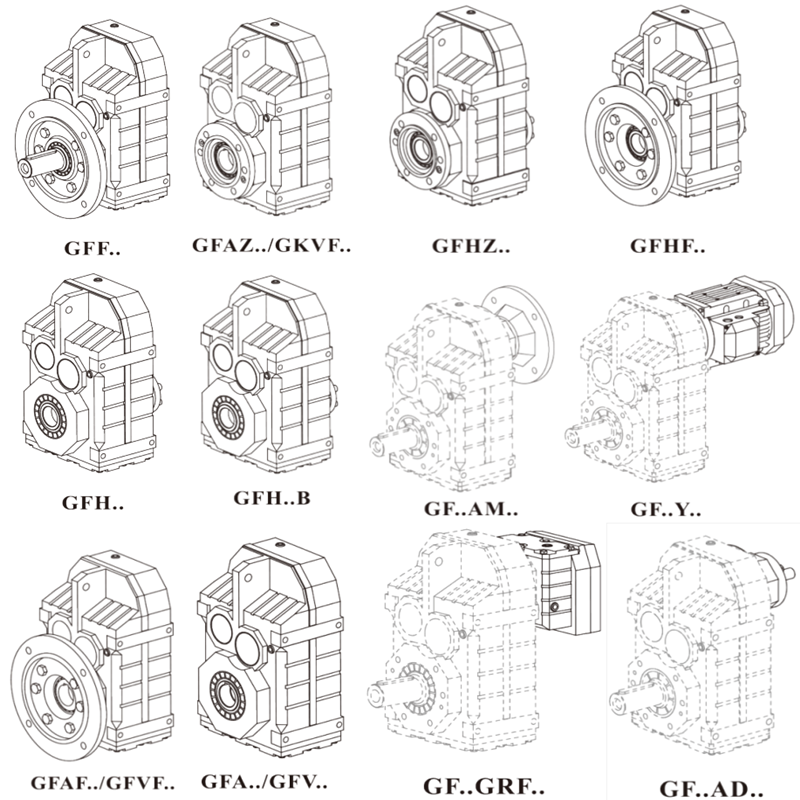

FF27DRE71S4齒輪減速機馬達類型：

F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機

FA..B底腳空心軸安裝平行軸—斜齒輪減速機

FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機

FA..空心軸安裝平行軸—斜齒輪減速機

FV..花鍵空心軸安裝平行軸—斜齒輪減速機

FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機

FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FAZ..是B14法蘭安裝平行軸—斜齒輪減速機

FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FF..是B5法蘭安裝平行軸—斜齒輪減速機

FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

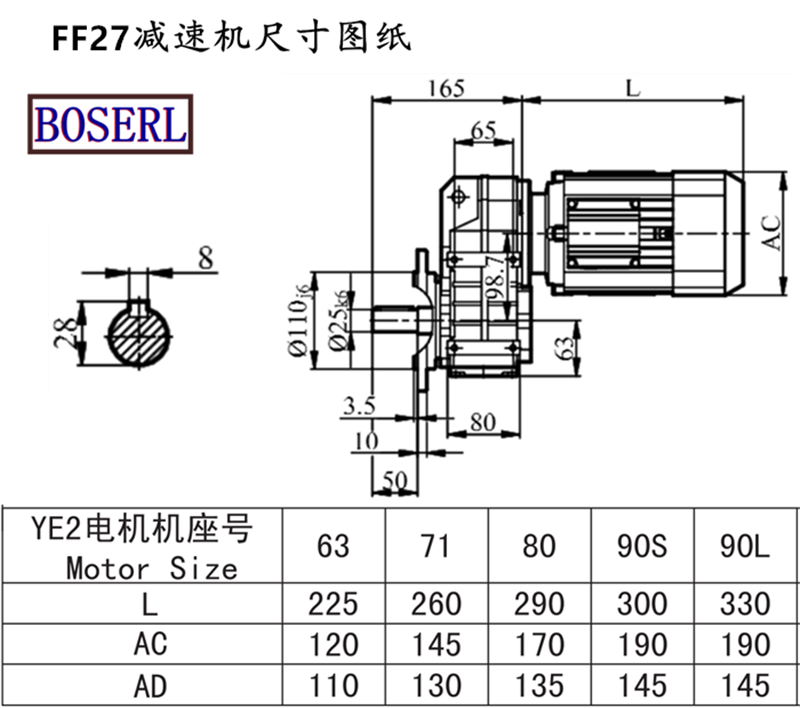

FF27DRE71S4齒輪減速機馬達安裝尺寸圖紙



FF27DRE71S4齒輪減速機馬達生產廠家，看廠請提前三天預約三項異步調速電機減速機

關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家

FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機

FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   一分鐘202轉減速機電機 FF27DRE71S4 FF27DVE71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FF27DRE71S4減速機樣本 點擊下載
FF27DRE71S4減速機三維圖紙 點擊下載
