SAF87DV132M4詳細信息
SAF87DV132M4
訂購熱線：13360667204
關鍵詞：5.5千瓦臥式電機減速器一體機_SAF87DV132M4_SAF87DRN132M4
SAF87DV132M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87DV132M4 | 77.14 | 5.5KW | 19.0rpm | 2160N.m | 160kg | 28200N | 0.85 |
| SAF87DV132M4 | 57.00 | 5.5KW | 26.0rpm | 1810N.m | 160kg | 28700N | 0.90 |
| SAF87DV132M4 | 47.91 | 5.5KW | 30.0rpm | 1530N.m | 160kg | 29100N | 1.05 |
| SAF87DV132M4 | 64.00 | 5.5KW | 23.0rpm | 1810N.m | 160kg | 28700N | 0.95 |
| SAF87DV132M4 | 44.03 | 5.5KW | 33.0rpm | 1410N.m | 160kg | 29200N | 1.15 |
| SAF87DV132M4 | 39.10 | 5.5KW | 37.0rpm | 1260N.m | 160kg | 29100N | 1.25 |
| SAF87DV132M4 | 34.96 | 5.5KW | 42.0rpm | 1130N.m | 160kg | 28500N | 1.40 |
| SAF87DV132M4 | 31.43 | 5.5KW | 46.0rpm | 1020N.m | 160kg | 27900N | 1.55 |
| SAF87DV132M4 | 27.28 | 5.5KW | 53.0rpm | 890N.m | 160kg | 27100N | 1.80 |
| SAF87DV132M4 | 25.50 | 5.5KW | 57.0rpm | 850N.m | 160kg | 25200N | 1.45 |
| SAF87DV132M4 | 21.43 | 5.5KW | 68.0rpm | 715N.m | 160kg | 24400N | 1.70 |
| SAF87DV132M4 | 19.70 | 5.5KW | 74.0rpm | 660N.m | 160kg | 24000N | 1.85 |
| SAF87DV132M4 | 17.49 | 5.5KW | 83.0rpm | 585N.m | 160kg | 23400N | 2.10 |
| SAF87DV132M4 | 15.64 | 5.5KW | 93.0rpm | 525N.m | 160kg | 22900N | 2.40 |
| SAF87DV132M4 | 14.06 | 5.5KW | 103rpm | 475N.m | 160kg | 22400N | 2.60 |
| SAF87DV132M4 | 12.21 | 5.5KW | 119rpm | 410N.m | 160kg | 21700N | 3.00 |
| SAF87DV132M4 | 10.93 | 5.5KW | 133rpm | 370N.m | 160kg | 21100N | 3.30 |
SAF87DRN132M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87DRN132M4 | 77.14 | 5.5KW | 19.0rpm | 2160N.m | 160kg | 28200N | 0.85 |
| SAF87DRN132M4 | 57.00 | 5.5KW | 26.0rpm | 1810N.m | 160kg | 28700N | 0.90 |
| SAF87DRN132M4 | 47.91 | 5.5KW | 30.0rpm | 1530N.m | 160kg | 29100N | 1.05 |
| SAF87DRN132M4 | 64.00 | 5.5KW | 23.0rpm | 1810N.m | 160kg | 28700N | 0.95 |
| SAF87DRN132M4 | 44.03 | 5.5KW | 33.0rpm | 1410N.m | 160kg | 29200N | 1.15 |
| SAF87DRN132M4 | 39.10 | 5.5KW | 37.0rpm | 1260N.m | 160kg | 29100N | 1.25 |
| SAF87DRN132M4 | 34.96 | 5.5KW | 42.0rpm | 1130N.m | 160kg | 28500N | 1.40 |
| SAF87DRN132M4 | 31.43 | 5.5KW | 46.0rpm | 1020N.m | 160kg | 27900N | 1.55 |
| SAF87DRN132M4 | 27.28 | 5.5KW | 53.0rpm | 890N.m | 160kg | 27100N | 1.80 |
| SAF87DRN132M4 | 25.50 | 5.5KW | 57.0rpm | 850N.m | 160kg | 25200N | 1.45 |
| SAF87DRN132M4 | 21.43 | 5.5KW | 68.0rpm | 715N.m | 160kg | 24400N | 1.70 |
| SAF87DRN132M4 | 19.70 | 5.5KW | 74.0rpm | 660N.m | 160kg | 24000N | 1.85 |
| SAF87DRN132M4 | 17.49 | 5.5KW | 83.0rpm | 585N.m | 160kg | 23400N | 2.10 |
| SAF87DRN132M4 | 15.64 | 5.5KW | 93.0rpm | 525N.m | 160kg | 22900N | 2.40 |
| SAF87DRN132M4 | 14.06 | 5.5KW | 103rpm | 475N.m | 160kg | 22400N | 2.60 |
| SAF87DRN132M4 | 12.21 | 5.5KW | 119rpm | 410N.m | 160kg | 21700N | 3.00 |
| SAF87DRN132M4 | 10.93 | 5.5KW | 133rpm | 370N.m | 160kg | 21100N | 3.30 |
SAF87DV132M4齒輪減速箱電機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

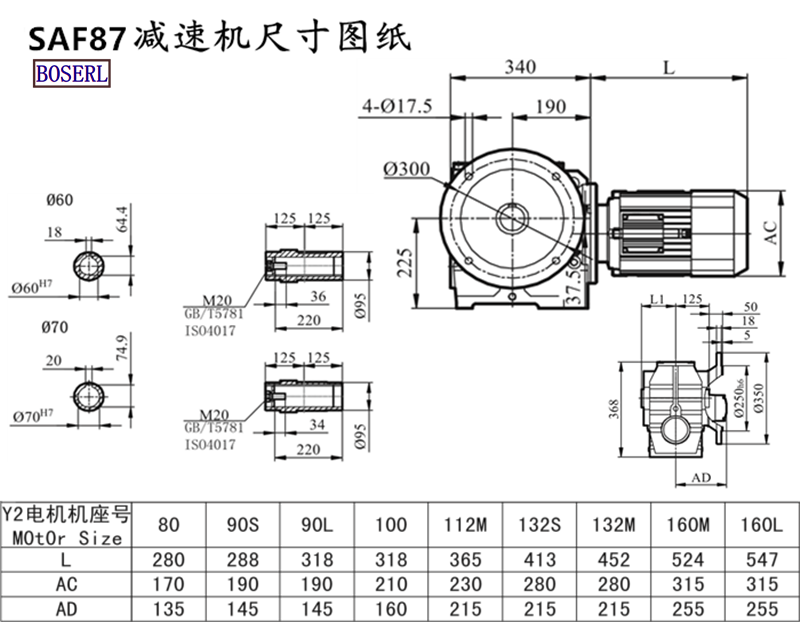

SAF87DV132M4齒輪減速箱電機安裝尺寸圖紙
SAF87DV132M4齒輪減速箱電機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 5.5千瓦臥式電機減速器一體機 SAF87DV132M4 SAF87DRN132M4
