SF77DRN132MC4詳細信息
SF77DRN132MC4
訂購熱線：13360667204
關鍵詞：30千瓦變頻減速機電機一體機_SF77DRN132MC4_SF77DRN132ML4
SF77DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF77DRN132MC4 | 28.41 | 7.5kw | 52.0rpm | 1220N.m | 123kg | 6290N | 0.85 |
| SF77DRN132MC4 | 25.07 | 7.5kw | 59.0rpm | 1080N.m | 123kg | 6490N | 0.95 |
| SF77DRN132MC4 | 22.22 | 7.5kw | 66.0rpm | 960N.m | 123kg | 6620N | 1.00 |
| SF77DRN132MC4 | 18.42 | 7.5kw | 80.0rpm | 820N.m | 123kg | 2080N | 0.85 |
| SF77DRN132MC4 | 17.45 | 7.5kw | 84.0rpm | 780N.m | 123kg | 2500N | 0.90 |
| SF77DRN132MC4 | 15.28 | 7.5kw | 96.0rpm | 685N.m | 123kg | 3420N | 1.05 |
| SF77DRN132MC4 | 13.76 | 7.5kw | 107rpm | 620N.m | 123kg | 4040N | 1.15 |
| SF77DRN132MC4 | 12.07 | 7.5kw | 122rpm | 545N.m | 123kg | 4690N | 1.30 |
| SF77DRN132MC4 | 10.65 | 7.5kw | 138rpm | 480N.m | 123kg | 5210N | 1.50 |
| SF77DRN132MC4 | 9.44 | 7.5kw | 156rpm | 425N.m | 123kg | 5560N | 1.70 |
| SF77DRN132MC4 | 8.06 | 7.5kw | 182rpm | 365N.m | 123kg | 5560N | 1.85 |
SF77DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF77DRN132ML4 | 28.41 | 7.5kw | 52.0rpm | 1220N.m | 123kg | 6290N | 0.85 |
| SF77DRN132ML4 | 25.07 | 7.5kw | 59.0rpm | 1080N.m | 123kg | 6490N | 0.95 |
| SF77DRN132ML4 | 22.22 | 7.5kw | 66.0rpm | 960N.m | 123kg | 6620N | 1.00 |
| SF77DRN132ML4 | 18.42 | 7.5kw | 80.0rpm | 820N.m | 123kg | 2080N | 0.85 |
| SF77DRN132ML4 | 17.45 | 7.5kw | 84.0rpm | 780N.m | 123kg | 2500N | 0.90 |
| SF77DRN132ML4 | 15.28 | 7.5kw | 96.0rpm | 685N.m | 123kg | 3420N | 1.05 |
| SF77DRN132ML4 | 13.76 | 7.5kw | 107rpm | 620N.m | 123kg | 4040N | 1.15 |
| SF77DRN132ML4 | 12.07 | 7.5kw | 122rpm | 545N.m | 123kg | 4690N | 1.30 |
| SF77DRN132ML4 | 10.65 | 7.5kw | 138rpm | 480N.m | 123kg | 5210N | 1.50 |
| SF77DRN132ML4 | 9.44 | 7.5kw | 156rpm | 425N.m | 123kg | 5560N | 1.70 |
| SF77DRN132ML4 | 8.06 | 7.5kw | 182rpm | 365N.m | 123kg | 5560N | 1.85 |

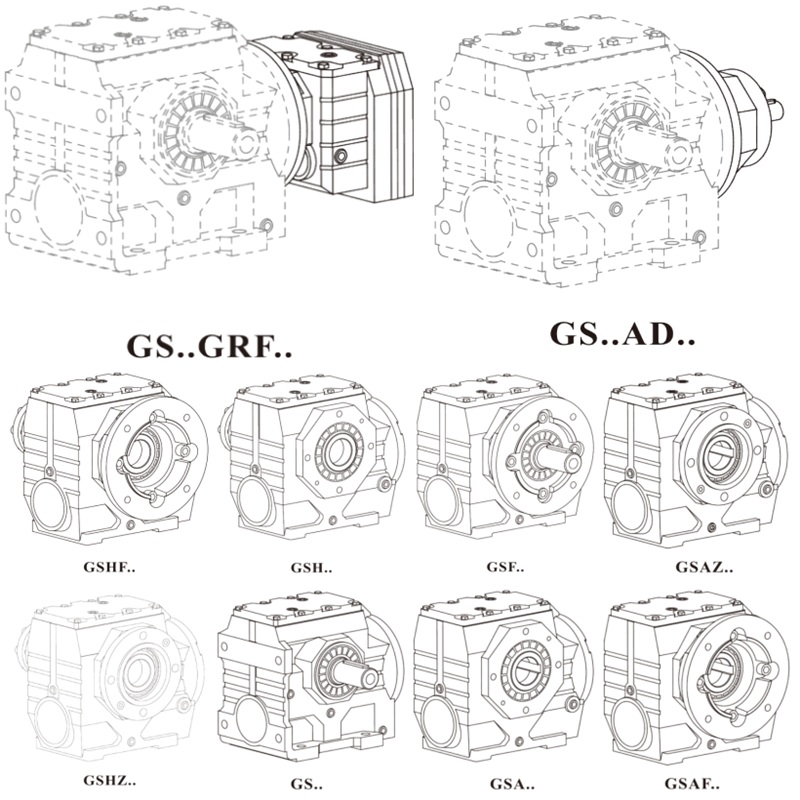

SF77DRN132MC4減速齒輪箱類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

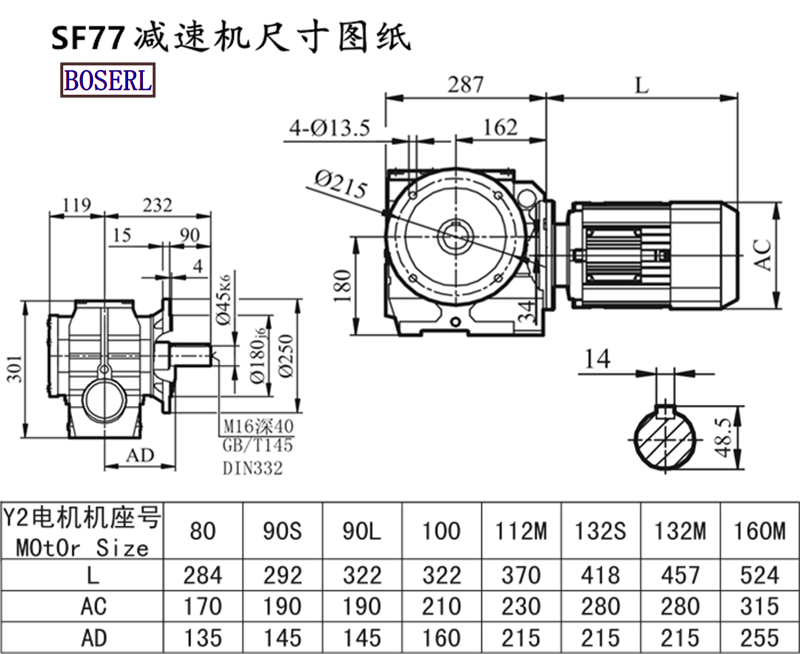

SF77DRN132MC4減速齒輪箱安裝尺寸圖紙
SF77DRN132MC4減速齒輪箱生產工廠展示：看廠請?zhí)崆叭祛A約
低速大扭矩減速電機應用案例展示：
關鍵詞:SF系列減速機_低速大扭矩減速器與電機_低轉數高扭矩減速電機一套_低速大扭矩減速機_低轉數大扭矩電機_低轉數大功率電機_SF系列減速機生產廠家
SF系列減速機型號：SF37減速機,SF47減速機,SF57減速機,SF67減速機,SF77減速機,SF87減速機,SF97減速機
SF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 30千瓦變頻減速機電機一體機 SF77DRN132MC4 SF77DRN132ML4
